QM Automated solutions
QM Automated Solutions are leaders in the creation of innovative, leading edge bespoke assembly systems for all automated assembly processes.
QM Automated solutions
QM Automated Solutions are leaders in the creation of innovative, leading edge bespoke assembly systems for all automated assembly processes.
Directech QM-Systems have expertise in supplying bespoke automation ranging from fully integrated production lines to manual assembly fixtures with poka-yoke devices. We supply solutions to a variety of sectors such as Medical Devices, Food and Beverage, Marine, Automotive, Areospace, Waste Management, Construction, Renewable Energy, Cosmetics. Our particular expertise in aerospace engineering assembly allows us to bring rigorous project management and documentation procedures to the creation of all assembly systems.
Our Automated Systems can take many forms and are often a combination of automated and manual assembly systems combined with robotics. Directech QM-Systems have expertise in rotary table systems, automated palletised systems, manual palletised systems, walking-beam assembly systems, carousel systems and combinations of these often used in parallel with robotics to produce cost-effective customer orientated solutions.
QM systems start the journey by understanding and often developing the customer process, providing a process driven solution using computer simulation techniques to demonstrate process viability. Once the process is defined, a conceptual solution is developed incorporating the latest technologies.
Directech QM-Systems
Our complete custom turnkey solutions include requirements capture, design, manufacture, supply, commissioning and ongoing maintenance and support. We are a true one-stop-shop from project conception through to completion.
From automated assembly aids through to complex robotic assembly and inspection lines, our automated assembly systems have been extensively deployed in both high volume and low volume industries, often assembling very intricate or complex components.
Many of our personnel have tier one client-side experience. As a result, we understand that you need the most economic solutions throughout the life cycle of your automated assembly system.
All of our projects are closely project managed to ensure time and time again we deliver a solution that is reliable and delivered on time.
Glass Reflow Induction Heat System
Glass Reflow Induction Heat System

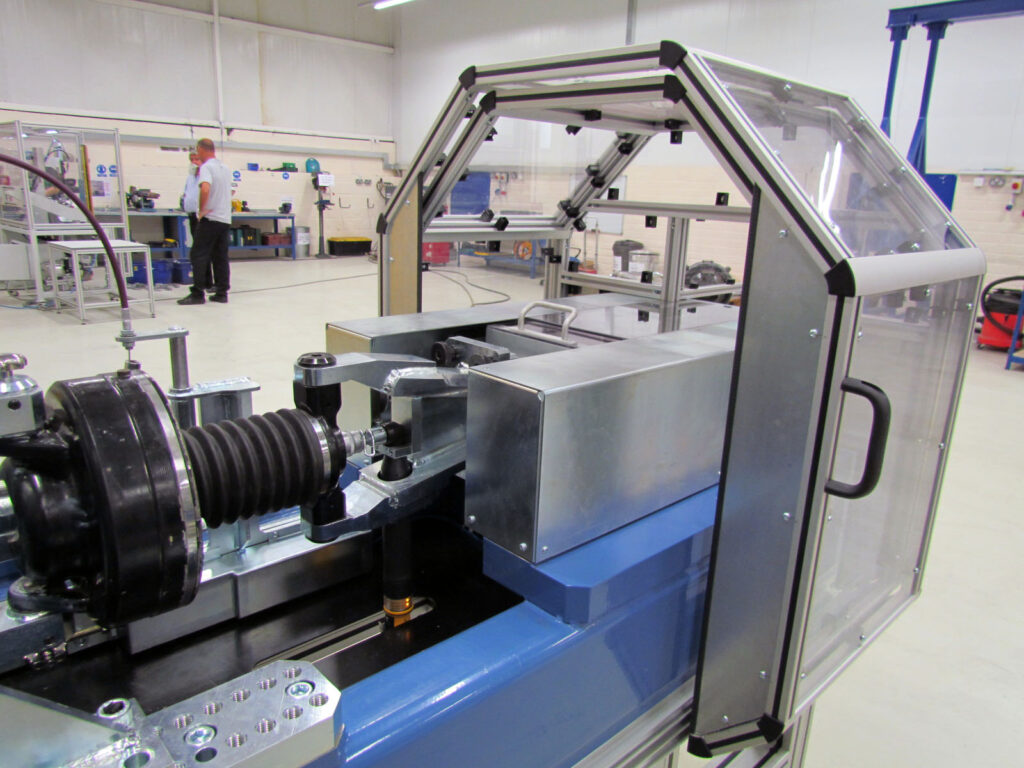

Park Brake Cylinder ATE
Park Brake Cylinder ATE
FEC Bracket Assembly & Separation Cell
FEC Bracket Assembly & Separation Cell
Fitting Collet Inspection System
Fitting Collet Inspection System
PVC Pipe Assembly Cell
PVC Pipe Assembly Cell
Bowl Feeders - Medical Curtain Assembly Cell
Bowl Feeders - Medical Curtain Assembly Cell
Assembly Cell with Staubli Robot
Assembly Cell with Staubli Robot

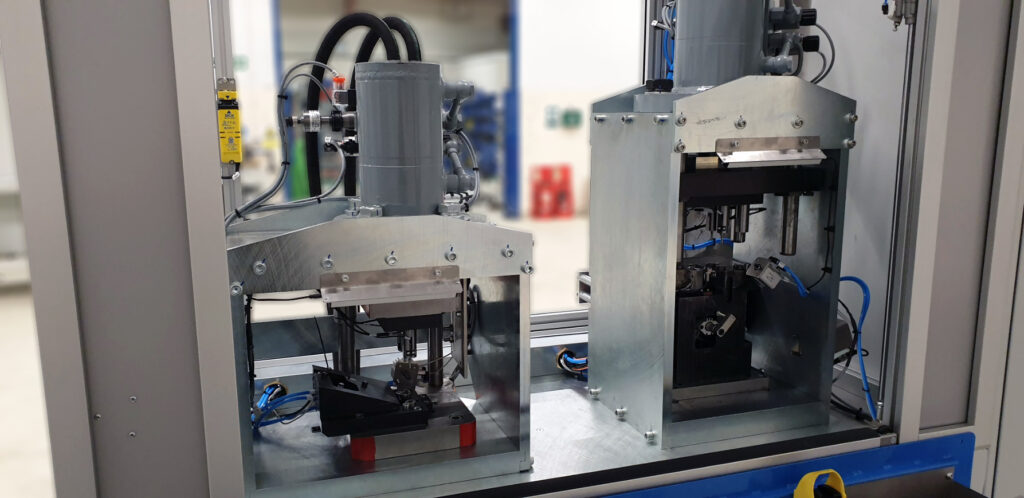

SPAC Nut Fastener Insertion Press
SPAC Nut Fastener Insertion Press

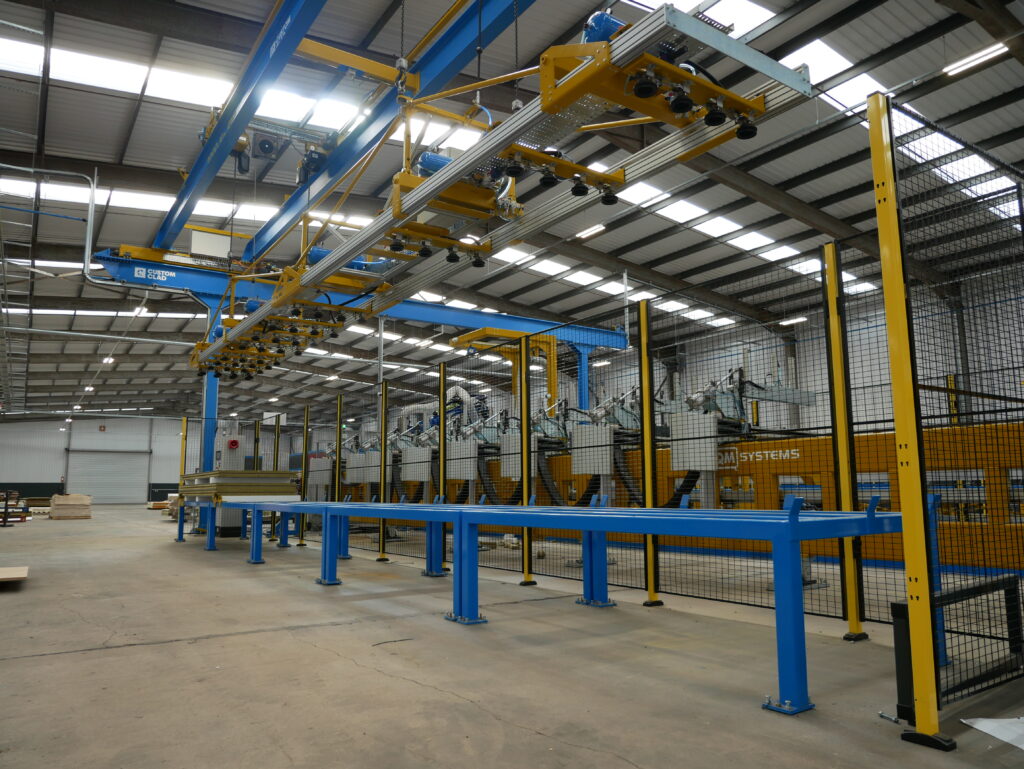

P1340560
P1340560
Automated solutions
Typical automated solutions include, but are not limited to:
- Pneumatic pick-and-place systems
- Servo driven pick-and-place-systems
- Component assembly
- Product assembly
- Vibratory bowl feed systems
- Centrifugal bowl feed systems
- Tooling and fixturing
- Adhesive application & assembly
- Pressing and punching
- Rivnut or Rivstud insertion
- SPAC nut or SPAC bolt insertion
- Clinch or Swage nut insertion
- Rotary table assembly
- Vision inspection systems (camera or sensor)
- Line palletising assembly
- Walking-beam systems
- Marking and verification systems (laser, dot-peen, engraving, inkjet, labelling etc)
